描述： 霍克AGV刷板刷塊TOPSB-200/TOPSK-200A充電模組AGV自動導航小車電池充電系統：有單極、雙極、三級、四級，15 A、20A、35 A、60A、80A、100A、150A、200A、
充電模組AGV自動導航小車電池充電系統：有單極、雙極、三級、四級，15 A、20A、35 A、60A、80A、100A、150A、200A、250A等多種規格型號選擇，可以對霍克鋰電池、霍克鉛酸電池、鎳氫電池、鎳鎘電池等電池充電式使用，也可以用在AGV導航運輸車在線充電系統，產品廣泛應用于電力、鐵路、通信、物流自動化、國防、石化、冶金、煤礦等領域的充電系統。
霍克TOP系列產品可以根據客戶要求或圖紙進行定制！
Product Features
This product is designed for automatic guided/pure electric passenger/electric forklift applications.Products from the basic power module N+1 parallel combination,the maximum to meet the 24V120A power applications.The machine adopts the controller specially developed for AGV car application demand,realize the function of logic control,system protection,parameter setting,charger management,upper communication and so on,and adopts 7-inch full color touch screen to realize human-computer interaction.
The system has the following features:
●DC output 24V60A and 48V50A modular power supply,support current expansion upgrade.
●hot-swap mode,N+1 redundant structure protection
●ultra-high power density,compact size
●Standard efficiency up to 92%
●variety use mode(independent charge,interactive charge,maintenance charge)
●With industrial communication bus(CAN/MODBUS/PROFIBUS DP)
●High protection safety rating(IP54),designed for industrial applications
This product is designed for automatic guided vehicles/electric forklifts and other applications.Products from the basic power module N+1 parallel combination,the maximum to meet the 24V240A/48V200A power applications.The machine adopts the controller specially designed for the AGV trolley application for the automatic production line.It realizes the functions of logic control,system protection,parameter setting,charger management,upper communication and so on,and adopts 7-inch full color touch screen to realize human-computer interaction.

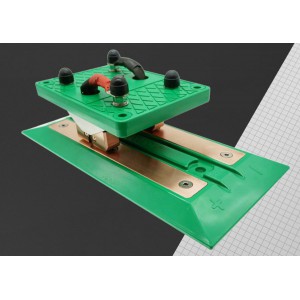

霍克AGV刷板刷塊TOPSB-200/TOPSK-200A
The system has the following features:
●Ultra-high power,240A 24V/200A 48V
●hot-swap mode,N+1 redundant structure protection
●ultra-high power density,compact size
●support current expansion upgrade
●Standard efficiency up to 92%
●Variety use mode(fast charge,interactive charge,balanced charge,maintenance charge)
●provide IO port for system interlock protection
●With industrial communication bus(CAN/MODBUS/PROFIBUS DP)
●High protection safety rating(IP54),designed for industrial applications
Product specifications
Voltage level
24Vsystem
48Vsystem
model
LPC120-24
LPC180-24
LPC240-24
LPC100-48
LPC150-48
LPC200-48
power
3600W
5400W
7200W
6000W
9000W
12000W
recharging current
5~120A
5~180A
5~240A
5~100A
5~150A
5~200A
Input voltage
220VAC±10%，50/60Hz（Optional 380VAC±10%）
Power factor
≥0.99 220Vac/50A,≥0.98 220Vac/25 A（Single module）
Dynamic adjustment rate
±5.0%for 10-90%or 90-10%Load change,Adjust the time<200us
Load Regulation
±0.5%from 10%to 100%load
Charging voltage
16～30VDC
43～58VDC
Steady flow accuracy
≦±0.5%
Noise voltage
<200 mV Peak peak,30 MHz bandwidth,<2 mV rms Telephone weight
Regulation accuracy
≦±0.5%
Time accuracy
≦±10S/24h
霍克AGV刷板刷塊TOPSB-200/TOPSK-200A
Charging parameter settings
Voltage
0.01V
Current
0.1A
time
1S
Dimensions
According to power
weight
According to power
Operating temperature
0℃~45℃
Storage temperatur
-10℃~40℃
Working humidity
Relative humidity 10%~80%，No condensation
protection
Overcurrent,overvoltage,overtemperature,reverse,missing,short circuit,cut off
communication
CAN/MODBUS/PROFIBUS DP Optional
Interaction DIO
Dry contact DIO,Battery contact informs,standby,charging,charging is complete,faulty
safety standard
IEC 60950-1
Electromagnetic compatibility standards
EN 61000-6
environment
ETSI EN 300 019-2 RoHS compliant
Insulation and pressure
3.0 KVAC–Input pair output 1.5 KVAC–Input to ground 0.5 KVDC–Output to ground
Average trouble-free working hours
5 Million hours
noise
50DB
LPC120-24 charging station dimensions:
Online charging station
LPC120-24 above specifications charging station Dimensions:
Online charging station
The charging station uses floor-mounted foot installation mode.
