TESCOM 26-1700F系列 背壓調壓閥-艾默生EMERSON

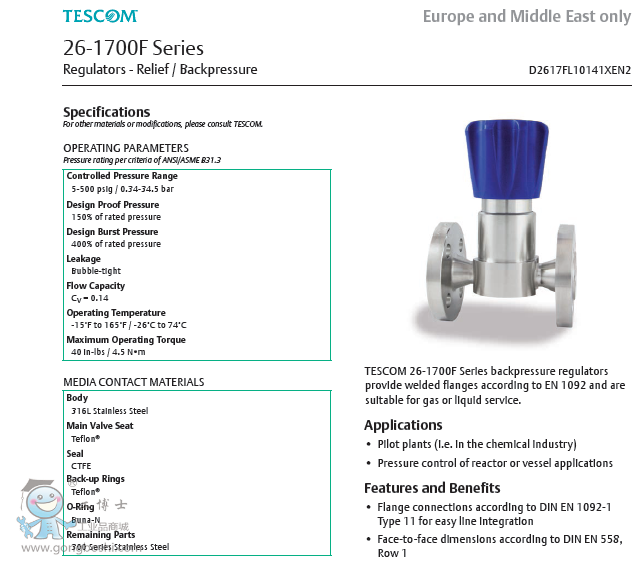

TESCOM 26-1700F Series backpressure regulators provide welded flanges according to EN 1092 and are suitable for gas or liquid service.
Applications
• Pilot plants (i.e. in the chemical industry)
• Pressure control of reactor or vessel applications
Features and Benefits
• Flange connections according to DIN EN 1092-1 Type 11 for easy line integration
• Face-to-face dimensions according to DIN EN 558, Row 1
• Connection up to DN 25
• Setpoint repeatability exceeds conventional relief valves
• Bubble-tight shutoff at all reseat pressures
• Safe and reliable piston-style sensor
• Compatible with the TESCOM Air Actuator and ER5000 Electropneumatic Controller for remote control
• Other connection standards upon request
