套片組

EG20T

CPU

Intel® Atom™ E640 1.0GHz

內存

板載 DDR2 up to 2GB

擴展

1 x Mini-PCIe socket (PCIe + USB) for WLAN option

1 x Mini-PCIe socket (USB) x 1 for WWAN option

1 x Bluetooth module for option

1 x Bundle GPS module or optional GPS with dead reckoning

1 x 2.5” SATA II SSD Bay

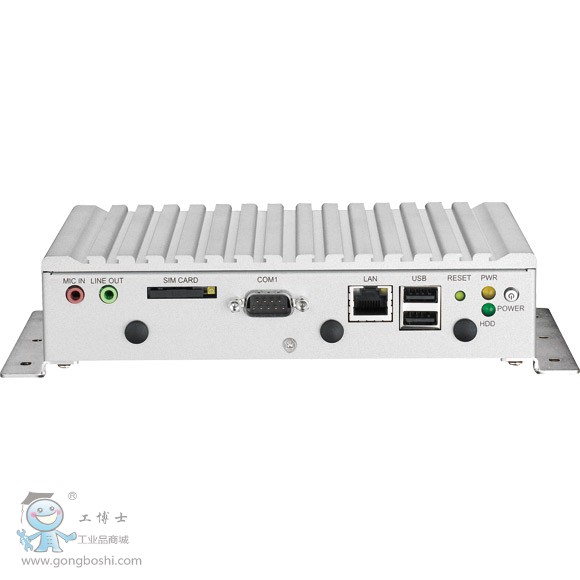

I/O 接口-前面板

1 x Power button

2 x LED indicators for power and storage

1 x System reset button

2 x USB 2.0 host type A connector

1 x RJ45 with LEDs for 10/100/1000Mbps Ethernet

1 x DB9 RS-2321 x SIM card socket

1 x Line-out, 1 x Mic-in (for WWAN CM8000 voice communication)

3 x Antenna hole reserved for SMA-type antenna connector (WWAN/WLAN/BT)

I/O 接口-后面板

1 x 6~36VDC input with Ignition and 15W typical power consumption

1 x 5V/1A and 12V/1A DC output, SMBus

1 x DB9 COM port, (1 x RS232) or (1 x RS232 + 1x RS422) or (1 x RS232 + 1x RS485) selected by SW5 DIP Switch and BIOS setting

1 x DB9 port, 4x GPI and (2 x GPO + CAN Bus 2.0B) or (4 x GPO) selected by BIOS

1 x DB9 dual RS-485 (optional 2 x RS-422, or 1 x RS-422 and 1 x RS-485)

1 x DB15 VGA (optional DB26 LVDS interface with 12V and USB 2.0)

1 x SMA-type GPS antenna connector

操作系統

Windows XP/WES2009

WinXP Pro for Embedded

Win7 Pro for Embedded

電源管理

Selectable boot-up & shut-down voltage for low power protection

HW design ready for 8-level delay time on/off at user’s self configuration

Power on/off ignition, software detectable

Support S4 suspend mode

規格尺寸

185 mm (W) x 120 mm (D) x 40 mm (H) (7.3” x 4.7” x 1.6”)

1 Kg (2.20 Lb)

構造

Aluminum top case with sheet metal

環境

Operating temperatures:
-30°C to 70°C (w/ industrial SSD) with air flow
-20°C to 60°C (w/ commercial HDD) with air flow

Storage temperatures: -40°C to 80°C

Relative humidity: 10% to 90% (non-condensing)

Vibration (random): 2g @5~500 HzVibration:
Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck;
Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test

Shock:
Operating : MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers= 20g
Crash hazard : MIL-STD-810F, Method 516.5, Procedure V, Ground equipment= 75g

通過認證

CE approval

FCC Class B

e13 Mark
