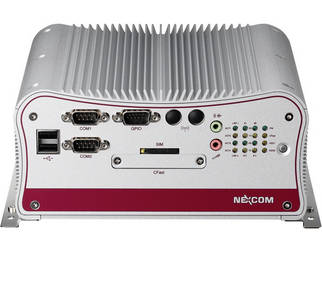

NISE 2310/2310E 基于Intel® Atom™ 雙核 D2550處理器，是另一款用于工業自動化的無風扇工業計算機。支持寬溫操作，可在嚴苛、惡劣的環境下運行。NISE 2310/2310E都遵循了NISE系列無風扇、線纜少的設計理念。在設計上，NISE 2310/2310E配置了4x LAN端口；支持WoL、LAN teaming和PXE功能。另外，NISE 2310/2310E還提供6x USB2.0，雙獨立顯示和出色的圖形處理性能，可滿足多種應用需求，1個PCI或PCIe x1擴展可供選擇。NISE 2310/2310E系列支持+9V 到 36V 寬壓DC輸入，大大提升了其在任何電源環境下的可靠性。
CPU OnBoard Intel® Atom™ Dual Core D2550 processor, 1.86GHz, 1M L2 cache Intel® 82801JIR ICH10 RAID
內存 2 x DDR3 so-dimm socket, support up to 4G DDR3/DDR3L 1066/1333/1600 SDRAM, with un-buffered and non-ECC Pre-install 4G industrial-grade memory as the manufacture configuration for shipment
雙獨立顯示選項 DVI-D + VGA (P/N: 60233VGA50X00, 1.8M cable, from DVI-I to VGA male type) DVI-D + DVI-D
前置I/O界面 ATX Power on/off switch HDD access/ power status LEDs 2x DB9, RS232/422/485 w/ 2.5KV isolation protection 2x USB2.0 4x GPO & 4x GPI 1x Mic-in and 1x Line-out SIM card socket CFast socket 2x antenna holes
后置I/O界面 1x 2-pin DC input, Support +9 to 36VDC input 1x DVI-I 1x DVI-D 4x Intel® 82574IT GbE LAN ports; Support WoL, teaming and PXE 4x USB2.0 2x DB9, RS232/422/485
設備 1x 2.5” SATA HDD driver bay 1x External CFast socket 1x External SIM card socket 1x internal Mini-PCIe socket
(Support optional WiFi or 3.5G wireless module, jumper free)
擴展 NISE 2310: One PCI Expansion
Add-on card length: 176mm max.
Power consumption: 10W/slot max. NISE 2310E: One PCIe x1 Expansion
Add-on card length: 176mm max.
Power consumption: 10W/slot max.
電源需求 Support +9V to 36VDC input; Support ATX power mode
尺寸 195mm (W) x 200mm (D) x 90mm (H) (7.7” x 7.9” x 3,6”)
構造 Aluminum Chassis with fanless design
運行環境 Operating temperature:
Ambient with air flow: -20°C to 65°C with industrial grade device Storage temperature: -30°C to 85°C Relative humidity: 10% to 93% (Non-condensing) Shock protection:
- HDD: 20G, half sine, 11ms, IEC60068-2-27
- CFast: 40G, half sine, 11ms, IEC60068-2-27 Vibration protection w/HDD
- Random: 0.5Grms @ 5~500 Hz according to IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz according to IEC60068-2-6
認證 CE approval FCC Class A
OS Support List Windows XP 32bits Windows 7 32bits WinCE 7.0
