賀德克溫度傳感器 TFP 100溫度探頭 ETS 3800 緊湊型電子溫度開關

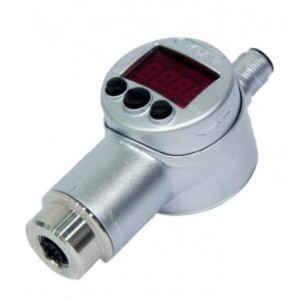

點擊圖片查看原圖
品牌： 賀德克溫度傳感器
單價： 面議
所在地： 上海
有效期至： 長期有效
最后更新： 2024-06-09 12:13
瀏覽次數： 953
詢價
店鋪基本資料信息

 產品詳細說明

賀德克溫度傳感器  ETS 3800是一款具有4位數字顯示的緊湊型電子溫度開關。

該版本適用于單獨的溫度探頭，其測量范圍為-22..+302 ºF，主要用于專為油箱安裝而開發的TFP 100溫度探頭。

但是，也可以評估常用的PT 100溫度探頭。

具有一個或兩個開關輸出和可能的附加模擬輸出信號的不同輸出版本，提供了多種應用可能性。

使用按鍵板可以非�？焖俸洼p松地調整開關點和相關的滯后。

Specifications

Type

 Electronic Temperature Switch

Model Code Description

 ETS 3866-2-000-000

Direct Current (DC) Supply Voltage When Applied According to UL Specifications (Without Analog Output)

 9 to 35 V

Note for Direct Current (DC) Supply Voltage When Applied According to UL Specifications

 Limited energy - According to 9.3 UL 61010; Class 2; UL 1310/1585; LPS UL 60950

Maximum Current Consumption (With Inactive Switching Output)

 35 mA

Maximum Current Consumption (With Inactive Switching Output and Analog Output)

 55 mA

Display

 4-Digit, LED, 7 Segment, Red, Height of Digits 7 mm

Weight

 ~87 g

Maximum Output Permitted Load Resistance

 500

Minimum Output Permitted Load Resistance

 1 k

Switching Function

 Switching direction of the switching outputs adjustable (N/C or N/O)

Electrical Connection

 Male M12x1, 4 Pole

Switch Point

 -27.0 to 150.0 ºC-17 to 296 ºF

Residual Ripple of Supply Voltage

 ≤ 5 %

Hysteresis (Switch Point)

 1.0 to 178.0 ºC2.0 to 320.0 ºF

Increment (Switch Point)

 0.5 ºC1.0 ºF

Note for Increment (Switch Point, Window Function)

  • According to customer specification
xxxxxxxxxxxxxxxxx" style="box-sizing: inherit; border: 1px solid rgb(0, 170, 184); background: rgb(0, 170, 184); color: rgb(255, 255, 255); border-radius: 10px; width: 17px; float: left; margin: 5px;">
 All ranges given in the table can be adjusted by the increments shown.

Lower Switch Value (Window Function)

 -27.0 to 146.5 ºC-17 to 296 ºF

Upper Switch Value (Window Function)

 -25.5 to 148 ºC-14 to 298 ºF

Increment (Window Function)

 0.5 ºC1.0 ºF

Maximum Total Current Consumption

 2.455 A

Modification Number

 000

Width

 40.4 mm

Height

 93.2 mm

Separate Temperature Probe (Not Supplied With the Instrument)
  • TFP 104 - 000 with male electr. conn. 4 pole Binder series 714 M18 (connector supplied)
    Part no. 904696

  • TFP 106 - 000 with male electr. conn. 4 pole M12x1 (connector not supplied)
    Part no. 921330

  • Tank installation sleeve for TFP 100
    Part no. 906170

Switching Outputs

 2 Switching Outputs

Division

 17

BUn

 EA

Input Data

Measuring Range

 -30 to 150 ºC-22 to 302 ºF

Note for Measuring Range

 Depending on the temperature range of the connected temperature sensor, the indication range of the ETS 3800 may be reduced.

Length

 42 mm

Input Mechanical Connection Type

 M12 Female Cable Connection

Input Mechanical Connection Size

 M12x1, 4 Pole Female

Sensing Temperature [Max]

 150 ºC302 ºF

Sensing Temperature [Min]

 -30 ºC-22 ºF

Output Data

Accuracy at Room Temperature

 ≤ ± 2.0ºF (+ PT100 error)

Operating Temperature [Min]

 -25 ºC-13 ºF

Operating Temperature [Max]

 80 ºC176 ºF

Output Temperature Drift at Maximum Zero Point and Range (Full Scale)

 ≤ ± 0.0085% %/°F

Switch Outputs

Switch Outputs Type

 PNP Transistor Switching Output

Maximum Switching Current Per Switch Output

 1.2 A

Switching Cycles In Million

 > 100 million

Environmental Conditions

Ambient Temperature Range

 -13 to 176 ºF

Ambient Temperature According to UL Specifications

 -13 to 140 ºF

Storage temperature range

 -40 to 176 ºF

CE Mark

 CE Mark EN 61000-6-1/2/3/4

CUL®US Mark

 Certificate No.: E318391

Note for CUL®US Mark

 Environmental conditions according to 1.4.2 UL 61010-1; C22.2 No. 61010-1

Vibration Resistance According to DIN EN 60068-2-6 at 0 to 500 Hz

 ≤ 10 g

Shock Resistance According to DIN EN 60068-2-29 (11 ms)

 ≤ 50 g

Protection class to IEC 6529

 IP 67

Pin Connections

Pin Connection 1

 +UB

Pin Connection 2

 SP2

Pin Connection 3

 0 Voltage

Pin Connection 4

 SP1

Setting Options

All the settings available on the ETS 3800 are combined in 2 easy-to-navigate menus. To prevent unauthorized adjustment of the instrument, a programming lock can be set.

Additional Information

For optimum adaptation to the particular application, the instrument has many additional adjustment parameters (e.g. switching delay times, N/C / N/O function, etc.).

Accessories

A male cable connector M12x1, 4 pole, to connect the separate temperature probe and a 3 m sensor cable, LIYCY 4 x 0.25 mm² are supplied with the instrument. Other accessories, such as electrical connectors, splash guards, clamps for wall-mounting, etc. can be found in the Accessories brochure.

Special Features



  • 2 switching outputs, up to 1.2 A load per output
  • Optional analog output signal selectable (4 .. 20 mA / 0 .. 10 V)
  • 4-digit digital display
  • Optimum alignment - display can be rotated in two planes (axes)
  • Switching / switch-back points and many useful additional functions can be set using keypad
  • Display of temperature and unit of measurement in ºC or ºF
  • Switching mode of the switching outputs adjustable (switching point function or window function)
  • Switching direction of the switching outputs adjustable (N/C or N/O)
  • Switch-on and switch-off delay adjustable from 0.00 .. 99.99 seconds
  • Choice of display (actual temperature, peak temperature, switching point 1, switching point 2, display off)



Note

Reverse polarity protection of the supply voltage, excess voltage, override and short circuit protection are provided.

Subject to technical modifications.
