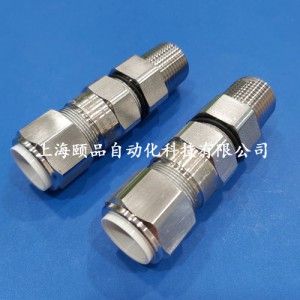

CMP不銹鋼鎧裝防爆格蘭（TE1FU系列）
點擊圖片查看原圖
品牌： CMP不銹鋼鎧裝防爆格蘭
CMP防爆格蘭： TE1FU系列
單價： 798.60元/只
所在地： 上海
有效期至： 長期有效
最后更新： 2024-12-23 10:46
瀏覽次數： 554
詢價
店鋪基本資料信息

 產品詳細說明
 英國CMP不銹鋼鎧裝防爆格蘭TE1FU系列（CMP TE1FU cable gland）

CMP防爆格蘭代理商: 上海頤品自動化科技有限公司

E1FW | Ex eb, Ex db, Ex nR, Ex ta, Explosive Atmosphere Cable Gland

For all types of Steel & Aluminium Wire Armoured Cables



英國CMP不銹鋼鎧裝防爆格蘭（TE1FU系列）

CMP cable gland（TE1FU series）

EPIN AUTOMATION Hotline：4008552521

CMP不銹鋼鎧裝防爆格蘭（TE1FU-CMP Cable Gland）

Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II

CMP防爆格蘭代理商：上海頤品自動化科技有限公司

關鍵詞：CMP防爆格蘭，CMP防爆變徑，CMP防爆堵頭，CMP防爆呼吸閥

CMP防爆格蘭等產品規格書及相關證書-請咨詢上海頤品自動化科技有限公司

TE1FU | Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Cable Gland

For all types of Armoured Cables

Globally Approved, Explosive Atmosphere Cable Gland

• Stainless steel compact design

• Fully sequential, three step installation procedure

• Reduces installation times, cost & risk

• Direct & remote installation

• Unique compensating displacement seal system(CDS)

• metal-to-metal installation regardless of cable bedding diameter

• Designed to prevent Coldflow, see CMP Technical document TS002 (available upon request)

• Integral protected deluge seal

• Controlled outer ‘load retention’ seal

• Unique OSTG prevents overtightening

• -60°C to +130°C

• Globally marked, IECEx, ATEX & cCSAus

• Superior EMC performance

• Patents granted: GB 1077517

CERTIFICATES

PRODUCT SELECTION TABLETA:IMAGE="" XMLNS="＇HTTP://WWW.W3.ORG/2000/SVG＇" WIDTH="＇200＇" HEIGHT="＇200＇" VIEWBOX="＇0" FILL="＇%232A80EB＇" D="＇M145.659" CENTER="" RIGHT:="" :="" STYLE="PADDING: 0PX; MARGIN: 0PX; BOX-SIZING: INHERIT; POSITION: ABSOLUTE; WIDTH: 20PX; HEIGHT: 20PX; BACKGROUND-IMAGE: URL(""); BACKGROUND-POSITION: INITIAL; BACKGROUND-SIZE: INITIAL; BACKGROUND-REPEAT: INITIAL; BACKGROUND-ATTACHMENT: INITIAL; BACKGROUND-ORIGIN: INITIAL; BACKGROUND-CLIP: INITIAL; DISPLAY: INLINE !IMPORTANT;">



Cable Gland Size Available Entry Threads ＇C＇ (Alternate Metric Thread Lengths Available) Cable
Bedding
Diameter
＇A＇		 Overall
Cable
Diameter
＇B＇		 Armour Range Across
Flats
＇D＇		 Across
Corners
＇D＇		 Protrusion
Length ＇F＇		 Combined Ordering Reference
(Stainless Steel Metric)		 Shroud Cable
Gland
Weight
(Kgs)
Standard Option Grooved Cone (X) Stepped Cone (W)
Metric Thread Length (Metric) ＇E＇ NPT Thread Length
(NPT) ＇E＇		 NPT Min Max Min Max Min Max Min Max Max Max Size Type Ordering
Suffix
20S16 M20 15.0 ½＇ 19.9 ¾" 3.1 8.6 6.1 13.1 0.3 1.0 0.8 1.25 24.0 26.4 57.3 20S16 TE1FU 1RA4 PVC04 0.15
20S M20 15.0 ½＇ 19.9 ¾" 6.1 11.6 9.5 15.9 0.3 1.0 0.8 1.25 24.0 26.4 57.3 20S TE1FU 1RA4 PVC04 0.15
20 M20 15.0 ½＇ 19.9 ¾" 6.5 13.9 12.5 20.9 0.4 1.0 0.8 1.25 30.5 33.6 61.2 20 TE1FU 1RA4 PVC06 0.23
25S M25 15.0 ¾＇ 20.2 1" 11.1 19.9 14.0 22.0 0.4 1.2 1.25 1.6 37.5 41.3 74.0 25S TE1FU 1RA4 PVC09 0.34
25 M25 15.0 ¾＇ 20.2 1" 11.1 19.9 18.2 26.2 0.4 1.2 1.25 1.6 37.5 41.3 74.0 25 TE1FU 1RA4 PVC09 0.34
32 M32 15.0 1＇ 25.0 1 ¼" 17.0 26.2 23.7 33.9 0.4 1.2 1.6 2.0 46.0 50.6 78.2 32 TE1FU 1RA4 PVC11 0.55
40 M40 15.0 1 ¼＇ 25.6 1 ½" 22.0 32.1 27.9 40.4 0.4 1.6 1.6 2.0 55.0 60.5 81.6 40 TE1FU 1RA4 PVC15 0.79
50S M50 15.0 1 ½＇ 26.1 2" 29.5 38.1 35.2 46.7 0.4 1.6 2.0 2.5 60.0 66.0 88.1 50S TE1FU 1RA4 PVC18 1.00
50 M50 15.0 2＇ 26.9 2 ½" 35.6 44.0 40.4 53.0 0.6 1.6 2.0 2.5 70.1 77.1 91.2 50 TE1FU 1RA4 PVC21 1.37
63S M63 15.0 2＇ 26.9 2 ½" 40.1 49.9 45.6 59.4 0.6 1.6 2.0 2.5 75.0 82.4 90.5 63S TE1FU 1RA4 PVC23 1.50
63 M63 15.0 2 ½＇ 39.9 3" 47.2 55.9 54.6 65.8 0.6 1.6 2.0 2.5 80.0 88.0 90.3 63 TE1FU 1RA4 PVC25 1.56
75S M75 15.0 2 ½＇ 39.9 3" 52.8 61.9 59.0 72.0 0.6 1.6 2.0 2.5 90.0 99.0 104.7 75S TE1FU 1RA4 PVC28 2.45
75 M75 15.0 3＇ 41.5 3 ½" 59.1 67.9 66.7 78.4 0.6 1.6 2.5 3.0 100.0 110.0 110.8 75 TE1FU 1RA4 PVC30 3.15
90 M90 24.0 3 ½＇ 42.8 4" 66.6 78.6 76.2 90.3 0.8 1.6 3.15 4.0 115.0 126.5 135.5 90 TE1FU 1RA4 PVC32 4.62
100 M100 24.0 3 ½＇ 42.8 4" 76.0 90.9 86.1 101.4 0.8 1.6 3.15 4.0 127.0 139.7 126.8 100 TE1FU 1RA4 LSF33 4.95
115 M115 24.0 4" 44.0 5" 86.0 97.9 101.5 110.2 0.8 1.6 3.15 4.0 138.0 151.8 157.5 115 TE1FU 1RA4 LSF34 7.60
130 M130 24.0 5" 46.8 - 97.0 114.9 110.2 123.2 0.8 1.6 3.15 4.0 157.0 172.7 164.5 130 TE1FU 1RA4 LSF35 8.73
Dimensions displayed in millimeters unless otherwise stated

TECHNICAL ILLUSTRATION

CMP鎧裝防爆格蘭（CMP Cable Gland）

Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II

CMP防爆格蘭代理商：上海頤品自動化科技有限公司

關鍵詞：CMP防爆格蘭，CMP防爆變徑，CMP防爆堵頭，CMP防爆呼吸閥

CMP防爆格蘭等產品規格書及相關證書-請咨詢上海頤品自動化科技有限公司
