CMP-90°防爆彎接頭(787-90° Adaptor)

點擊圖片查看原圖
品牌: CMP防爆格蘭
CMP防爆格蘭: 787-90° Adaptor
單價: 698.60元/只
所在地: 上海
有效期至: 長期有效
最后更新: 2024-12-23 10:46
瀏覽次數(shù): 542
詢價
店鋪基本資料信息

產品詳細說明

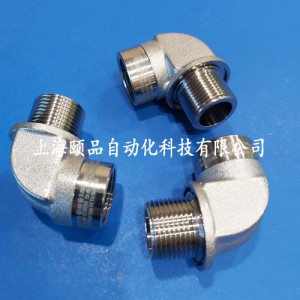

CMP-90°防爆彎接頭(787-90° Degree Adaptor)

CMP防爆格蘭代理商:上海頤品自動化科技有限公司

關鍵詞:CMP防爆格蘭,CMP防爆葛蘭,CMP防爆填料函,CMP防爆密封接頭

CMP非鎧防爆格蘭,CMP鎧裝防爆格蘭,CMP防爆變徑,CMP防爆呼吸閥堵頭

英國CMP-90°防爆彎接頭(787-90° Degree Adaptor)

CMP防爆格蘭代理商: 上海頤品自動化科技有限公司

787 | 90 Degree Adaptor

Available in brass, nickel plated brass, aluminium, stainless steel

90° Adaptor, Globally Approved, Explosive Atmosphere Cable / Conduit Accessory

• Protects cables from excessive bending stress
• General purpose / industrial version available
• Supplied with male or female threads
• Can be supplied with thread conversion
• Equipment interface ‘O’ ring seal available
• -60°C to +200°C
• Globally marked, IECEx, ATEX & cCSAus
• Can be used with 737 (not Ex d direct entry applications)

If you require further information, please contact EPIN AUTOMATION



CERTIFICATES

  • CMP-90°防爆彎接頭(787-90° Degree Adaptor)示例圖1 CMP-90°防爆彎接頭(787-90° Degree Adaptor)示例圖2  CMP-90°防爆彎接頭(787-90° Degree Adaptor)示例圖3  CMP-90°防爆彎接頭(787-90° Degree Adaptor)示例圖4  CMP-90°防爆彎接頭(787-90° Degree Adaptor)示例圖5  CMP-90°防爆彎接頭(787-90° Degree Adaptor)示例圖6 CMP-90°防爆彎接頭(787-90° Degree Adaptor)示例圖7

PRODUCT SELECTION TABLE

CMP防爆格蘭代理商: 上海頤品自動化科技有限公司

Ordering Reference Male
Thread Size 'A'
Minimum
Thread Length 'E'
Bore
Diameter 'C'
Female Thread Size Protrusion Length 'D' Protrusion Length 'F' Width 'B' Width 'B'
787DM2M2 M20 X 1.5 15.3 14.0 M20 X 1.5 29.6 41.0 24.0 7
787DM3M3 M25 X 1.5 15.3 18.6 M25 X 1.5 36.3 49.3 29.0 10
787DM4M4 M32 X 1.5 15.3 25.6 M32 X 1.5 45.2 56.3 36.0 15
787DM5M5 M40 X 1.5 15.3 33.6 M40 X 1.5 54.2 64.8 44.0 25
787DM6M6 M50 X 1.5 15.3 41.0 M50 X 1.5 68.3 74.0 54.0 30
787DM7M7 M63 X 1.5 15.3 50.0 M63 X 1.5 97.0 104.3 75.3 45
787DM8M8 M75 X 1.5 15.3 61.3 M75 X 1.5 97.0 111.3 79.5 45
787DM9M9 M90 X 2.0 15.3 80.0 M90 X 2.0 100.0 131.3 110.0 45
787DM10M10 M100 X 2.0 15.3 91.0 M100 X 2.0 110.0 141.3 115.0 45
Dimensions displayed in millimeters unless otherwise stated



CMP-90°防爆彎接頭(787-90° Degree Adaptor)示例圖8



英國CMP-90°防爆彎接頭(787-90° Degree Adaptor)

CMP防爆格蘭代理商: 上海頤品自動化科技有限公司

Hazardous Area Cable Glands-ATEX IECEX,Exe,Exd Group II

CMP防爆格蘭代理商:上海頤品自動化科技有限公司

關鍵詞:CMP防爆格蘭,CMP防爆變徑,CMP防爆堵頭,CMP防爆呼吸閥

CMP防爆格蘭等產品規(guī)格書及相關證書-請咨詢上海頤品自動化科技有限公司
