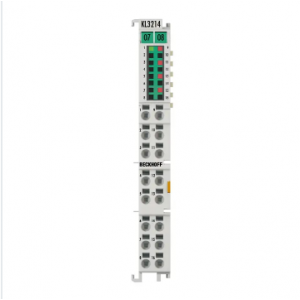

倍福KL3214 | Bus Terminal, 4-channel analog input

點擊圖片查看原圖

店鋪基本資料信息

產(chǎn)品詳細說明

Technical data	KL3214
Number of inputs	4
Power supply	via the K-bus
Input filter limit frequency	typ. 1 kHz
Sensor types	Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, potentiometer: 10 Ω…1.2/4 kΩ, KTY sensors (types see documentation)
Connection method	3-wire
Measuring range	-200…+850 °C (Pt sensors); -60…+250 °C (Ni sensors)
Conversion time	approx. 170 ms default setting
Measuring current	< 0.5 mA (load-dependent)
Resolution	0.1 °C per digit
Measurement error/ uncertainty	< ±0.5 °C for Pt sensors
Electrical isolation	500 V (K-bus/signal voltage)
Current consumption power contacts	–
Current consumption K-bus	typ. 120 mA
Special features	open-circuit recognition
Weight	approx. 60 g
Operating/storage temperature	0…+55 °C/-25…+85 °C
Relative humidity	95 %, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, UL

Housing data	HD housing
Design form	HD (High Density) housing with signal LEDs
Material	polycarbonate
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	–
Wiring	solid conductors (e): direct plug-in technique; fine-stranded conductors (f) and ferrule (a): spring actuation by screwdriver
Connection cross-section	s: 0.08…1.5 mm², st: 0.25…1.5 mm², f*: 0.14…0.75 mm²
Stripping length	8…9 mm
