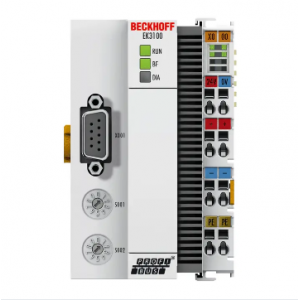

倍福 EK3100 | PROFIBUS Bus Coupler

點(diǎn)擊圖片查看原圖

店鋪基本資料信息

產(chǎn)品詳細(xì)說(shuō)明

Technical data	EK3100
Task within EtherCAT system	coupling of standard digital and analog EtherCAT Terminals and EtherCAT Box modules to PROFIBUS networks
Number of EtherCAT Terminals	depending on the process data size
Type/number of peripheral signals	depending on the process data size
Protocol	PROFIBUS DP
Data transfer rates	up to 12 Mbaud (automatic detection)
Configuration	not required
Bus interface	1 x D-sub 9-pin socket with shielding
Power supply	24 V DC (-15 %/+20 %)
Input current	typ. 120 mA + (total E-bus current)/4
Current consumption E-bus	up to 2 A
Power contacts	max. 24 V DC/max. 10 A
Electrical isolation	500 V (power contact/supply voltage/Ethernet)
Dimensions (W x H x D)	64 mm x 100 mm x 73 mm
Operating/storage temperature	-25…+60 °C/-40…+85 °C
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity	95 %, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, UL, ATEX, IECEx
Ex marking	ATEX: II 3 G Ex nA IIC T4 Gc IECEx: Ex ec IIC T4 Gc
