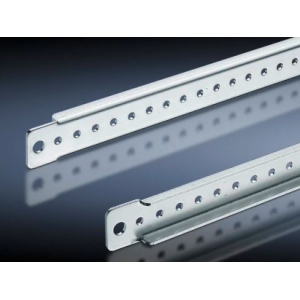

威圖機柜Rittal支撐條 用于VX、TS、VX SE、TP、AX
產品型號4694.000
用于簡便固定電纜槽、電纜軟管夾、防接觸保護蓋板、門上安裝設備、電纜夾鉗和電纜固定件。
產品描述:
用于簡便固定電纜槽、電纜軟管夾、防接觸保護蓋板、門上安裝設備、電纜夾鉗和電纜固定件。
材料:
鋼板
表面:
鍍鋅
供貨范圍:
包括安裝固定件
長度:
340 mm
VX installation options:
In enclosure width/depth 400 mm, on the outer mounting level
VX SE installation options:
In enclosure width/depth 400 mm, on the outer mounting level
AX installation options:
In door width 400 mm, with cam lock
TS installation options:
In enclosure width/depth 400 mm, on the outer mounting level
TP installation options:
In TP pedestal and one-piece console pedestal, in enclosure depth 400 mm, in conjunction with rail for interior installation for TP, compact enclosure HD
技術數據:
孔直徑為 4.5 mm，以安裝孔陣分布尺寸 25 mm 分布
適用于:
箱體類型: VX
TS
VX SE
TP
AX
Suitable for width or depth: 400 mm
包裝單元:
20 件
重量/包裝:
3.54 kg
