必得客直流24v長距離小型接近開關，屏蔽式距離增強型接近傳感器

技術參數
安裝方式	齊平
檢測距離	1mm
LED顯示	有
工作電壓	10-30VDC
允許脈動電壓	<10%
無負載電流	<10mA
負載電流	200mA
漏電流	<0.01mA
電壓降	<1.5v
開關頻率	2KHZ
響應時間	0.1ms
開關磁滯	<15%(Sr)
重復精度	<1.0%(Sr)
防護等級	IP67
工作溫度	-25℃至+70℃
溫度漂移	<10%(Sr)
過載電流保護	220mA
感應面材質	PBT
連接方式	2米防油PVC電纜

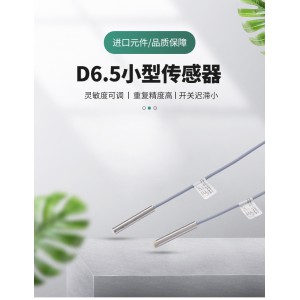

D6.5電感式傳感器，檢測距離1mm/2mm/3mm/4mm，齊平，標準型體長45mm，短型體長30mm，超短型體長18mm，出線式：

I1SF-D6.501N-O3U2,I1SF-D6.501N-C3U2,I1SF-D6.501P-O3U2,

I1SF-D6.501P-C3U2,I1SF-D6.502N-O3U2,I1SF-D6.502N-C3U2,

I1SF-D6.502P-O3U2,I1SF-D6.502P-C3U2,I1SF-D6.503N-O3U2,

I1SF-D6.503N-C3U2,I1SF-D6.503P-O3U2,I1SF-D6.503P-C3U2,

I1SF-D6.504N-O3U2,I1SF-D6.504N-C3U2,I1SF-D6.504P-O3U2,

I1SF-D6.504P-C3U2,I1SF-D6.501N-O3S2,I1SF-D6.501N-C3S2,

I1SF-D6.501P-O3S2,I1SF-D6.501P-C3S2,I1SF-D6.502N-O3S2,

I1SF-D6.502N-C3S2,I1SF-D6.502P-O3S2,I1SF-D6.502P-C3S2,

I1SF-D6.503N-O3S2,I1SF-D6.503N-C3S2,I1SF-D6.503P-O3S2,

I1SF-D6.503P-C3S2,I1SF-D6.504N-O3S2,I1SF-D6.504N-C3S2,

I1SF-D6.504P-O3S2,I1SF-D6.504P-C3S2,I1SF-D6.501N-O3R2,

I1SF-D6.501N-C3R2,I1SF-D6.501P-O3R2,I1SF-D6.501P-C3R2,

I1SF-D6.502N-O3R2,I1SF-D6.502N-C3R2,I1SF-D6.502P-O3R2,

I1SF-D6.502P-C3R2,I1SF-D6.503N-O3R2,I1SF-D6.503N-C3R2,

I1SF-D6.503P-O3R2,I1SF-D6.503P-C3R2,I1SF-D6.504N-O3R2,

I1SF-D6.504N-C3R2,I1SF-D6.504P-O3R2,I1SF-D6.504P-C3R2,

I4CF-D6.502C-O2U2，I4CF-D6.502C-C2U2I4CN-D6.502C-O2U2，

I4CN-D6.502C-C2U2,I4CF-D6.503C-O2U2，I4CF-D6.503C-C2U2
