德國隆堡LUMBERG圓形連接器螺紋接頭KV
點擊圖片查看原圖
品牌： 隆堡
品牌： 隆堡
單價： 面議
所在地： 上海
有效期至： 長期有效
最后更新： 2023-06-01 11:39
瀏覽次數： 235
詢價
店鋪基本資料信息

 產品詳細說明

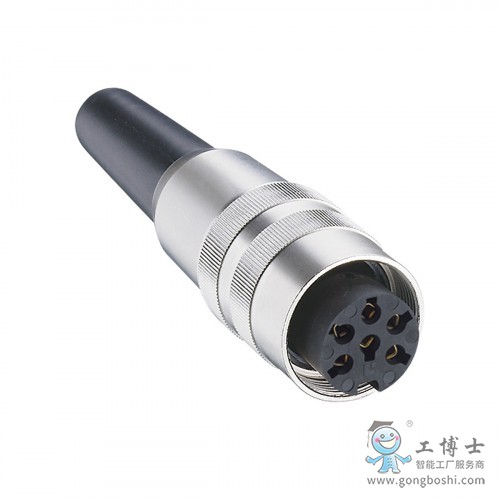

德國隆堡LUMBERG圓形連接器螺紋接頭KV
圓形連接器螺紋接頭M16 acc。IEC 61076-2-106, IP40/IP68
隆堡連接器KV

套接字acc。符合IEC 61076-2-106, IP40，直型，帶螺紋連接，焊接端子和長彎曲保護

環境條件
Temperature range:-40 °C/+85 °C

物料
Insulating body:PA GF, V-0 according to UL94

Contact bush:CuZn, silver-plated and flash gold-plated (3-8 poles)
CuZn, pre-nickel and gold-plated (12 poles)

Sleeve:PC, HB according to UL94

Strain relief:steel, nickel-plated

Housing:CuZn, nickel-plated

Bend protection sleeve:TPE

Screw:steel, nickel-plated

機械數據
Insertion force/contact:≤ 5.0 N *1

Withdrawal force/contact:≥ 1.2 N (3-8 poles)
≥ 0.9 N (12 poles) *2

Protection class:IP40 *3

1) measured with a polished steel pin, nominal thickness 1.5 mm (1.0 mm with 12 poles)

2) measured with a polished steel pin, nominal thickness 1.5 mm (1.0 mm with 12 poles)

3) according to IEC DIN EN 60529, only in locked condition with an appropriate counterpart

可連接的電線用于焊接連接
Section:≤ 0.75 mm² (AWG 20)
(3-8 poles)
≤ 0.25 mm² (AWG 24)
(12 poles)

Cable diameter:4–6 mm

電氣數據（Tamb 20 °C）
Contact resistance:≤ 5 m

Rated current:5 A (Tamb 40 °C, 3-8 poles)
3 A (Tamb 40 °C, 12 poles)

Rated voltage:with pollution degree 1:
300 V (versions 30, 40, 50/6, 60, 70)
100 V (versions 50, 71, 80, 81)
160 V (Polbild 120)
with pollution degree 2:
250 V (versions 30, 40)
32 V (versions 50, 71, 80, 81)
160 V (versions 50/6, 60, 70, 120)

Rated impulse voltage:1500 V (versions 30, 40, 50/6, 60, 70, 120)
500 V (versions 50, 71, 80, 81)
