那智MC35/50/70機器人特性：
1.靈活處理各種環境：
可通過選項選擇l P65規格和l P67規格。在多種環境條件下，都能通過機器人大大提高生產率。
2.大的動作范圍和強有力的手臂***大工作半徑2,050mm：
強有力的手腕可自由搬運各式各樣的工件。
3.Adaptable to various production environments.：
The new MC(35/50/7Okg) has a std.lP54 rating for thebody,(optional lP65/IP67) and std.lP67 for the arm/wrist.Available lPratings make the MC Series ideal for variousapplications that include harsh environments that
4.previously required expensive robot covers：
Large working envelope and powerful robot arm Maximum reach of 2,050mm.Strong wrist torque canhandle a large variety of applications.

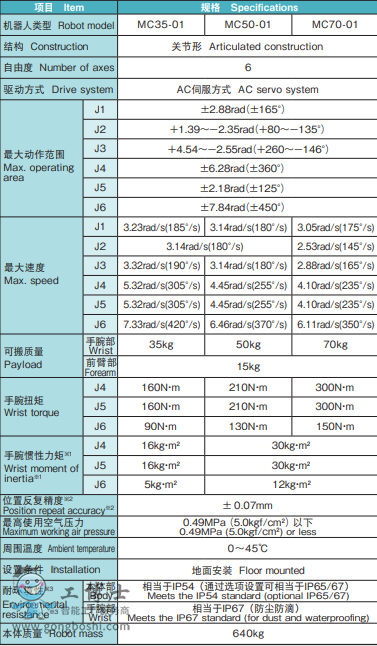

二、技術參數如下圖：
1[rad]= 180/n[].1[N-m] = 1/9.8[kgf-m]
※1:手腕容許慣性力矩因手腕負荷條件而不同，請注意�！�2:以JS B8432為依據。
※3:不可使用有機溶劑、酸,堿、氯系、汽油系切削液等
使密封部件劣化的液體。
※1 ∶ Note that wrist moment of inertia varies depending on wrist load conditions.※2∶JIS B8432 compliant.
※3∶Fluids that corrode the seal material, such as organic solvents,acids,alkalis, salts
and petroleum-based cutting fluids, cannot be used.p;
