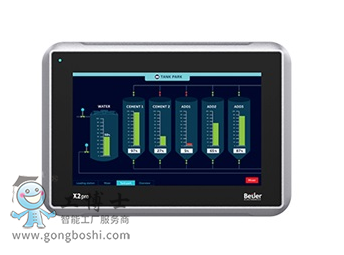

北爾觸摸屏 X2 pro7 帶兩個以太網(wǎng)
點擊圖片查看原圖
品牌： 北爾
像素： 800 × 480 pixel (16:9)
單價： 面議
所在地： 北京
有效期至： 長期有效
最后更新： 2023-12-04 09:27
瀏覽次數(shù)： 399
詢價
店鋪基本資料信息

 產(chǎn)品詳細說明


X2 pro 7 with 2 Ethernet

7'' HMI with iX runtime


  • 800 × 480 pixel (16:9)
  • TFT-LCD touch screen
  • 1.5 GB application memory
  • Ethernet 2x100 Mbit
  • -10°C to +60°C operating temperature
  • CE, FCC, KCC, UL approvals
  • DNV, KR, GL, LR, ABS, CCS marine approvals

     Facts

    General description

    Part number 630009405
    Part status Active
    Warranty 2 year

    Certifications

    General CE, FCC, KCC, UL 61010-2-201

    Mechanical

    Mechanical size 204 x 143 x 50mm
      Panel Mount, VESA 75 x 75
      1million finger touch operations
    Touch type Resistive
    Cut-out size 189 x 128mm
    Weight 0.8 kg
    Housing material Powder-coated aluminum, Gray

    Power

    Input voltage 24 V DC (18 to 32 VDC) CE: The power supply must conformwith the requirements according to IEC 60950 and IEC 61558-2-4. UL and cUL: The power supplymust conformwith the requirements for class II power supplies.
    Power consumption (max) 14.4W
    Input fuse Internal DC fuse



    CPU i.MX6DualLite, Dual Cortex-A9 1.0GHz 512kBL2cache
    RAM 1 GB
    FLASH 2GB SSD(eMMC), 1.5GB free for application

    Display

    Size diagonal 7" diagonal
    Resolution 800x480 pixels
    Backlight LED Backlight
    Backlight life time 20000 hours
    Backlight brightness 350 cd/m2
    Backlight dimming Industrial Dimming
    Display type TFT-LCD with LED backlight

    Communication serial

    Number of serial ports 1 Port 9pin DSUB
    Serial port 1 RS 232 (RTS/CTS)
    Serial port 2 RS422/485
    Serial port 3 RS485 (only if COM 2 is RS485)

    Ethernet communication

    Number of Ethernet ports 2
    Ethernet port 1 1x10/100 Base-T (shielded RJ45)
    Ethernet port 2 1x10/100 Base-T (shielded RJ45)

    Expansion interface

    Expansion port Yes, ciX expansion module
    SD card SD and SDHC
    USB 1xUSB 2.0 500mA

    Environmental

    Operating temperature -10°C to +60°C
    Storage temperature -20°C to +70°C
    Shock 15g, half-sine, 11ms according to IEC60068-2-27
    Vibration 1g, according to IEC 60068-2-6, Test Fc
    Sealing front IP65, NEMA 4X/ 12 and UL Type 4X/ 12
    Sealing back IP20
    Humidity 5% – 85% non-condensed
