威德福三缸工業(yè)泵 W200H W200M W200L
點擊圖片查看原圖
品牌： 威德福Weatherford
功率： 149KW
行程： 127mm
單價： 面議
所在地： 上海
有效期至： 長期有效
最后更新： 2018-04-05 11:17
瀏覽次數(shù)： 357
詢價
店鋪基本資料信息

 產品詳細說明
威德福Weatherford三缸工業(yè)泵 W200 W200H W200M W200L

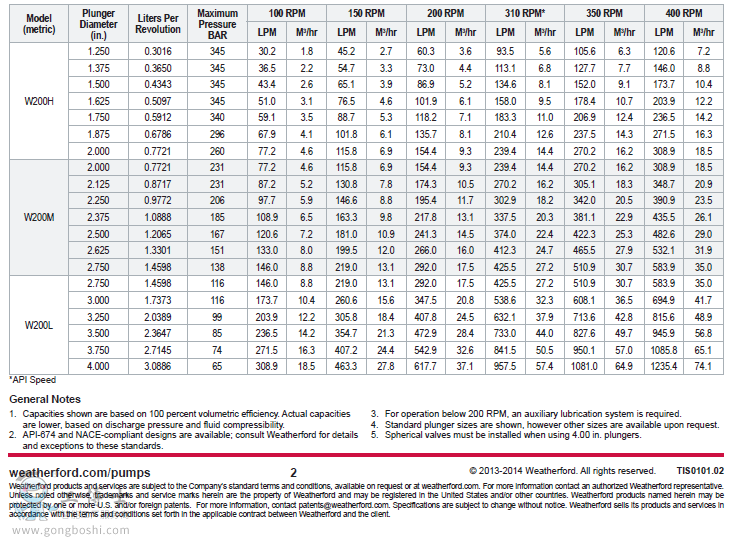

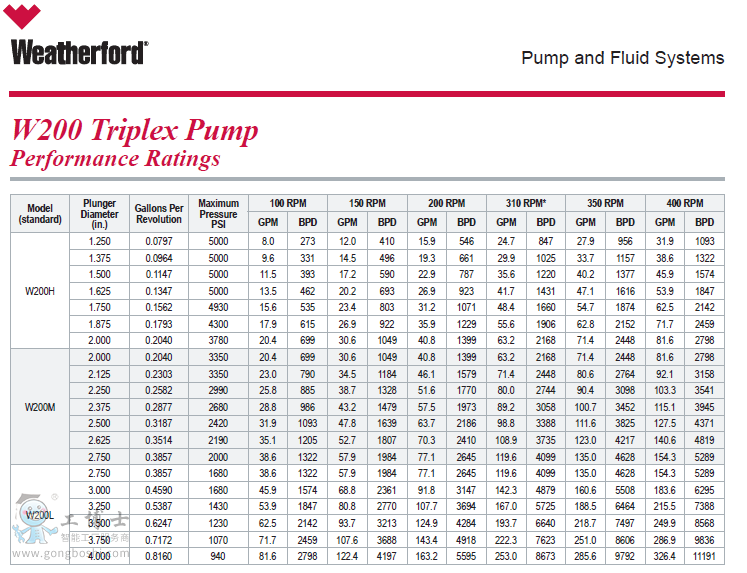

Pump Specifications:
Rated (HP, kW) 200 149
Stroke length (in., mm) 5 127
Maximum discharge pressure (PSI, Bar)
W200H 5,000 345
W200M 3,350 231
W200L 1,680 116
Rated rod load (lb, kg) 11,870 5,385
API-674 speed, RPM 310
Maximum speed, RPM 400
Minimum speed, RPM 100
Crankshaft dimensions (in., mm)
Diameter 4.875 124
Length (long) 11.75 298
Length (short) 5.62 143
Keyway, width × depth (in., mm) 1.25 × .62 32 × 16
Oil capacity (gal, l)
Pump 6.5 24.6
Reducer (varies with ratio) 3.5 to 6.5 13 to 25
Weight (lb, kg); estimates only
Pump
W200H 4,707 2,135
W200M 4,792 2,174
W200L 4,842 2,196
Reducer 1,100 499
Mechanical efficiency 90%
Flange Connections:
Pump Model             Discharge Connection Sizes (in., mm)            Suction Connection Sizes (in., mm)
W200H                                     2 (50.8) ANSI 2500 RJ                                     3 (76.2) API 2000 RJ
W200M                                     2 (50.8) API 5000 RJ                                       4 (101.6) ANSI 150 FF
W200L                                      3 (76.2) API 2000 RJ                                       6 (152.4) ANSI 150 FF
Standard Equipment:
• Cast aluminum-bronze, forged duplex stainless steel,
or forged carbon steel fluid ends
• Aluminum-bronze or duplex stainless steel stuffing boxes
• Various valve designs offered per fluid end style
• Tungsten carbide coated plungers over stainless steel
base or solid ceramic plungers
• Double extended crankshaft
• Multiple plunger packing arrangements offered

Optional Accessories
• Weatherford bolt on gear reducers (ratios)
––2.27:1  ––2.89:1  ––3.25:1  ––3.36:1  ––3.69:1  ––4.38:1  ––4.84:1  ––5.56:1
• Packing lubricators
• Customized plunger packing arrangements
• Power end lube system
• Complete pump packages
