威德福三缸工業泵 W165H W165M W165L
點擊圖片查看原圖
品牌： 威德福Weatherford
功率： 123KW
行程： 127mm
單價： 面議
所在地： 上海
有效期至： 長期有效
最后更新： 2018-04-05 11:17
瀏覽次數： 308
詢價
店鋪基本資料信息

 產品詳細說明
威德福Weatherford三缸工業泵 W165 W165H W165M W165L

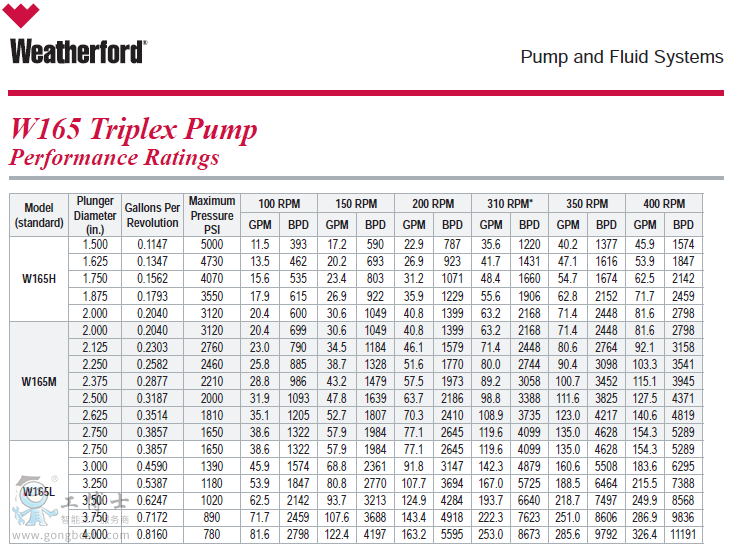

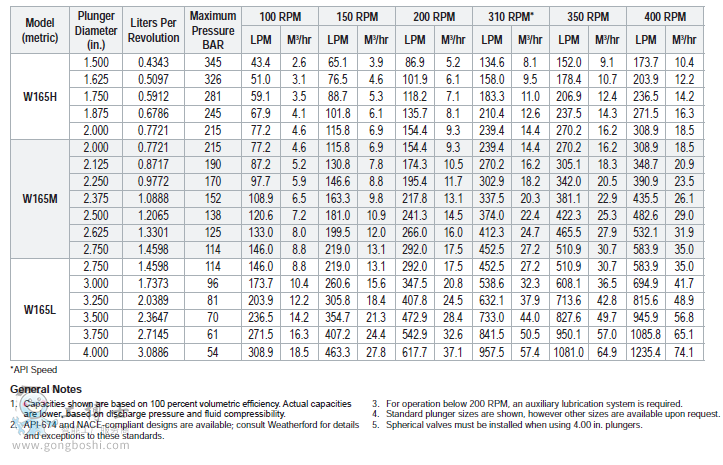

Pump Specifications:
Rated (HP, kW) 165 123
Stroke length (in., mm) 5 127
Maximum discharge pressure (PSI, Bar)
W165H 5,000 345
W165M 3,120 215
W165L 1,650 114
Rated rod load (lb, kg) 9,800 4,445
API-674 speed, RPM 310
Maximum speed, RPM 400
Minimum speed, RPM 100
Crankshaft dimensions (in., mm)
Diameter 4.125 105
Length (long) 7.92 201
Length (short) 5.62 149
Keyway, width × depth (in., mm) 1.00 × .50 25 × 13
Oil capacity (gal, l)
Pump 8.0 30.3
Reducer (varies with ratio) 2.25 to 3.5 8.52 to 13.25
Weight (lb, kg); estimates only
Pump
W165H 4,213 1,911
W165M 4,132 1,874
W165L 4,037 1,831
Reducer 800 363
Mechanical efficiency 90%

Flange Connections:
Pump Model            Discharge Connection Sizes (in., mm)      Suction Connection Sizes (in., mm)
W165H                                 2 (50.8) ANSI 2500 RJ                                   3 (76.2) API 2000 RJ
W165M                                 2 (50.8) API 5000 RJ                                      4 (101.6) ANSI 150 FF
W165L                                  3 (76.2) API 2000 RJ                                      6 (152.4) ANSI 150 FF

Standard Equipment:
• Cast aluminum-bronze, forged duplex stainless steel, or forged carbon steel fluid ends
• Aluminum-bronze or duplex stainless steel stuffing boxes
• Various valve designs offered per fluid end style
• Tungsten carbide coated plungers over stainless steel base or solid ceramic plungers
• Double extended crankshaft
• Multiple plunger packing arrangements offered

Optional Accessories:
• Weatherford bolt on gear reducers (ratios)
– 2.80:1  – 3.22:1  – 3.46:1  – 4.00:1  – 4.38:1  – 4.78:1  – 4.96:1  – 5.74:1
• Packing lubricators
• Customized plunger packing arrangements
• Complete pump packages
