威德福三缸工業泵 W100H W100M W100L
點擊圖片查看原圖
品牌： 威德福Weatherford
功率： 75KW
行程： 102mm
單價： 面議
所在地： 上海
有效期至： 長期有效
最后更新： 2018-04-05 11:32
瀏覽次數： 370
詢價
店鋪基本資料信息

 產品詳細說明
威德福Weatherford三缸工業泵 W100 W100H W100M W100L

Pump Specifications:
Rated (HP, kW) 100 75
Stroke length (in., mm) 4 102
Maximum discharge pressure (PSI, Bar)
W100H 5,000 345
W100M 3,180 219
W100L 1,660 114
Rated rod load (lb, kg) 6,595 2,991
API-674 speed, RPM 350
Maximum speed, RPM 450
Minimum speed, RPM 150
Crankshaft dimensions (in., mm)
Diameter 3.75 95
Length (both sides) 8.31 211
Keyway, width × depth (in., mm) .875 × .438 22 × 11
Oil capacity (gal, l)
Pump 5.5 20.8
Reducer 3.0 11.4
Weight (lb, kg); estimates only
Pump
W100H 3,200 1,451
W100M 3,100 1,406
W100L 3,150 1,429
Reducer 500 227
Mechanical efficiency 90%

Flange Connections:
Pump Model                Discharge Connection Sizes (in., mm)              Suction Connection Sizes (in., mm)
W100H                                  1.5 (38.1) ANSI 2500 RJ                                     3 (76.2) ANSI 300 FF
W100M                                  1.5 (38.1) API 5000 RJ                                       3 (76.2) ANSI 150 FF
W100L                                    2.5 (63.5) API 2000 RJ                                       5 (127) ANSI 150 FF

Standard Equipment:
• Cast aluminum-bronze, forged duplex stainless steel, or forged carbon steel fluid ends
• Aluminum-bronze or duplex stainless steel stuffing boxes
• Various valve designs offered per fluid end style
• Tungsten carbide coated plungers over stainless steel base or solid ceramic plungers
• Double extended crankshaft
• Multiple plunger packing arrangements offered.

Optional Accessories:
• Weatherford bolt on gear reducers (ratios)
– 2.61:1  – 3.15:1  – 3.42:1  – 3.89:1  – 4.27:1   – 5.23:1
• Packing lubricators
• Customized plunger packing arrangements
• Complete pump packages

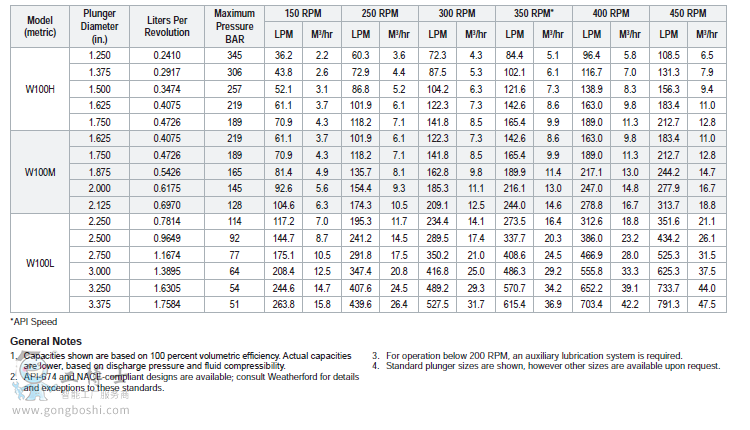

威德福Weatherford W100 三缸工業泵-1

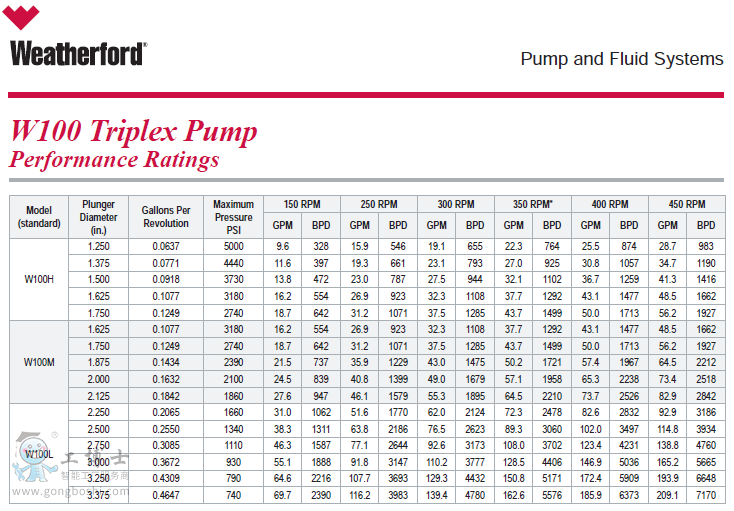

威德福Weatherford W100 三缸工業泵-2
