The PVXM type pump is a heavy duty, single stage, in-line centrifugal pump, designed for the Petrochemical Industry, chemical plants, general service and circulating applications.

Features and Benefits

Pump casing  The pump has its main casing gasket axial to the shaft allowing maintenance to the rotating element by removing the back pull out unit. Suction and discharge branches are at the casing and therefore its piping remain undisturbed at maintenance.

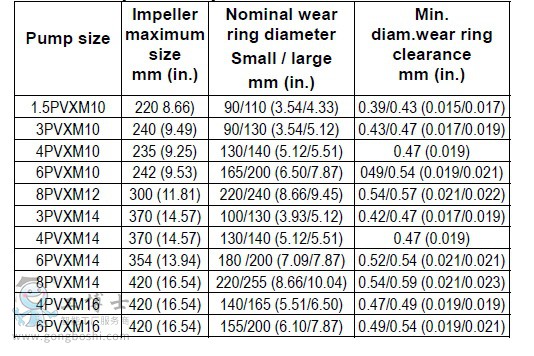

Impeller   The impeller is fully shrouded and is fitted with impeller wear rings.
Diffuser  The diffuser is tuned to the impeller and the multi channel diffuser is concentric aligned around the impeller.
Pump Shaft  The pump is of the dry shaft design and has a keyed drive end.
Stuffing box  The stuffing box has a spigot (rabbet) fit between the pump casing and seal plate for optimum concentricity. The design enables a number of sealing options to be fitted.
Shaft seal The mechanical seal(s) attached to the pump shaft seals the pumped liquid from the environment. Gland packing may be fitted as an option, for non-hazardous service only.
