VEGA VEGACAP 69 電容式限位傳感器

點擊圖片查看原圖
品牌: 德國VEGA
溫度: -40-150℃
單價: 面議
所在地: 上海
有效期至: 長期有效
最后更新: 2022-04-01 20:11
瀏覽次數: 483
詢價
店鋪基本資料信息

產品詳細說明

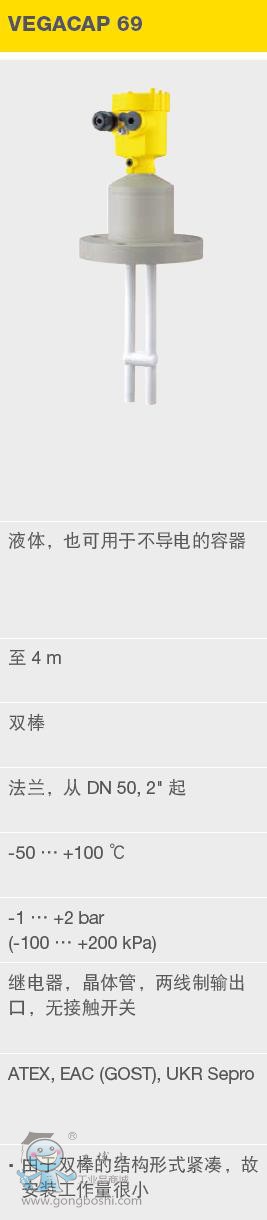

 VEGA VEGACAP 69 電容式限位傳感器

微信截圖_20170619111859


由于雙棒的結構形式緊湊,故安裝工作量很小


應用范圍

Liquids, also in non-conductive vessels

VEGACAP69用于限位檢測不導電容器中的液體或腐蝕性液體。雙棒測量電極采用全絕緣,具有很高的化學穩定性。



您的獲益

  • Simple use in non-condcutive vessels due to ground rod
  • Low mounting expenditure through compact double rod version
  • Long service life and low maintenance due to high resistance materials


技術參數

Measuring range - Distance

4 m

Process temperature

-50 ... 100 °C

Process pressure

-1 ... 2 bar

Version

FEP insulation

Materials,-wetted-parts

§ PTFE

§ PP

§ FEP

Flange connection

≥ DN50, ≥ 2"

Seal-material

no media contact

Housing-material

Plastic

Protection-rating

IP 66/IP 67

Output

§ Relay (DPDT)

§ Contactless electronic switch

§ Transistor (NPN/PNP)

§ Two-wire

Ambient temperature

-40 ... 80 °C
