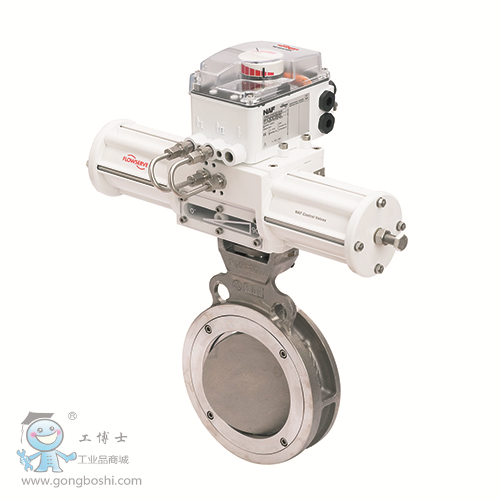

福斯Flowserve TOREX蝶閥

點擊圖片查看原圖
品牌: NAF
Size: 3" - 28"
Pressure: Class 150 & 300
單價: 面議
所在地: 上海
有效期至: 長期有效
最后更新: 2017-07-16 22:41
瀏覽次數: 376
詢價
店鋪基本資料信息

產品詳細說明

High-performance, triple-offset, metal- or soft-seated butterfly valve frequently used for isolation or on-off applications, but equally suitable for control, especially on high-flow, low-pressure applications.



Features and Benefits

•Longer service life provided by triple-offset design, which minimizes seat wear during opening and closing
•Minimized pressure loss and low energy costs due to tight shutoff
•Low installation costs enabled by compact wafer design and low weight
•Improved safety assured by Safety Integrity Level (SIL) 3 and IEC 61508 certification
•Increased uptime — even in difficult media and demanding pressures — through excellent design, materials and performance characteristics



Size Range:
•DN 80 to 700
•NPS 3" to 28"


Pressure Class Range:
•PN 10 to 40
•ANSI 150 to 300


Seating Material: Metal, Soft


Flowserve-NAF-TripleOffsetButterflyValves-Torex[1]
關于福斯閥門的更多產品及應用,請關注 http://www.flowserve-valve.gongboshi,com
