產(chǎn)品配置：

機箱：IPC-610MB-L
主板：PCA-6011VG
CPU：E5300
內(nèi)存：2G
硬盤：500G
DVD光驅(qū)，鼠標，鍵盤

機箱說明：

• Supports an ATX motherboard or a backplane with up to 15 slots
• Shock-resistant disk drive bay design holds up to three 5.25" and one 3.5" disk drives
• Special hold-down clamp design with rubber cushions protects the cards from shocks and vibrations
• Power and HDD activity notification improves system availability
• Front-accessible air filter for easy system maintenance
• Lockable front door prevents unauthorized access
• Flexible mechanical design supports both 300 W single PS/2 and redundant ATX power supply

Specifications

Drive Bay	Front-accessible
5.25"	3
3.5"	1
Cooling	Fan	1 (85 CFM)
Air Filter	Yes
Miscellaneous	Slide Rail	General Device C-300 series supported (Not included)
Indicator	Power & HDD activity
Rear Panel	Reserved one D-SUB 9-pin and one 68-pin SCSI openings
Environment	Operating	Non-Operating
Temperature	0 ~ 40 °C (32 ~ 104 °F)	-20 ~ 60 °C (-4 ~ 140 °F)
Humidity	-20 ~ 60 °C (-4 ~ 140 °F)	10 ~ 95 % @ 40 °C, non-condensing
Vibration (5 ~ 500 MHz)	1 Grms	2 G
Shock	10 G (With 11 msec duration, 1/2 sine wave)	30 G
Acoustic Noise	Less than 52 dB sound pressure at 5 ~ 28 °C (41 ~ 82 °F)
Altitude	0 to 3048 m (0 ~ 10,000 ft)
Physical Characteristics	Dimensions (W x H x D)	482 x 177 x 480 mm (19" x 7" x 18.9")
Weight	16.5 kg (36.3 lb)

主板說明：

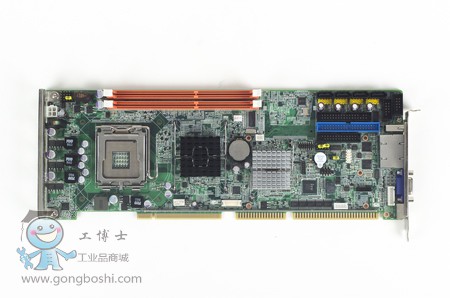

PCA-6011

Specifcations

Processor System	CPU (45nm/65nm)	Intel Core 2 Quad	Intel Core 2 Duo	Intel Pentium	Intel Celeron
Max Speed	Q9650 3.0 GHz	E8500 3.16 GHz	E6500 2.93 GHz	E1500 2.2 GHz
L2 Cache	12 MB	6 M	8 M	512 KB
Chipset	Intel G41 + ICH7/ICH7R (only for G2 SKU)
BIOS	AMI 16 Mb SPI Flash
FSB	800/1066/1333 MHz
Bus	PCI	32 bit/33 MHz PCI
ISA	HISA (ISA High Driver)
Memory	Technology	Dual-channel DDR3 800/1066/1333 DIMMs
Max. Cap.	8 GB
Socket	240-pin DIMM x 2
Graphics	Controller	Intel Graphics Media Accelerator X4500
VRAM	Shared with system memory up to 352 MB
Video Output	15-Pin VGA D-sub Connector x1/DVI connector x1 (only for G2 SKU)
Ethernet	Interface	10/100/1000 Mbps
Controller	Intel 82583 V
Connector	RJ-45 with LED Connector x 2 (G2 SKU), x1 (VG SKU)
SATA	Bandwidth	300 MB/s
Channel	4 ports
RAID	0, 1, 5, 10 (only for G2 SKU)
EIDE	Mode	ATA 100/66/33
Channel	1 (Supports up to 2 IDE devices; Master device is alternative for CF socket)
CF	(Optional)
I/O Interface	USB 2.0	8 ports by pin header(VG SKU); 6 ports by pin header/1 port on bracket I/O (G2 SKU)
Serial	2 RS-232 on board pin-headers, plus for ports of RS-485 with auto-ow control by module (optional, Advantech P/N: PCA-COM485-00A1E)
Parallel	1 (EPP/ECP/SPP)
FDD	1
PS/2	1 (for mouse and keyboard, Y cable is included in the package)
Watchdog Timer	Output	System reset
Interval	Programmable, 1~255 sec
Miscellaneous	Audio Output	Intel High Defnition audio interface (requires an audio extension module P/N: PCA-AUDIO-HDA1E)
Power Requirement	CPU	Confguration1: Core 2 Quad Q9400 (3.0 G, 95 W) + DDR3 1066 2 G x2
Voltage	+12 V	+5 V	+3.3 V	+5 VSB	-12 V	-5 V
Curent	5.14 A	4.04 A	0 A	0.17 A	0 A	0 A
CPU	Confguration 2: Core2 Duo E8400 (3.0G, 65W) + DDR3 1066 2 GB x2
Voltage	+12 V	+5 V	+3.3 V	+5 VSB	-12 V	-5 V
Curent	3.63 A	3.4 A	0 A	0.15 A	0 A	0 A
Environment	Operating	Non-Operating
Temperature	0 ~ 60° C(32 ~ 140° F), (operating humidity: 40° C @ 85% RH Non-Condensing)	-40° C ~ 85° C and 60° C @ 95% RH Non-Condensing
Physical	Dimensions	338 mm (L) x 122 mm (W) (13.3" x 4.8")
