福斯Flowserve Anchor/Darling Y型截止閥

點擊圖片查看原圖

品牌：	Anchor/Darling
Size：	1/2" - 24 "
Pressure：	class 500 - 1500
單價：	8888.00元/臺
所在地：	上海
有效期至：	長期有效
最后更新：	2017-07-16 22:41
瀏覽次數：	382

店鋪基本資料信息

flowserve閥門
[VIP第3年] 指數:4
通過認證 [誠信檔案]
聯系人周經理(女士) 銷售經理
會員 [當前離線] [加為商友] [發送信件]
電話0731-88706966
手機0731-88706966 [發送短信]
地址上海市寶山區富聯一路98弄6號

產品詳細說明

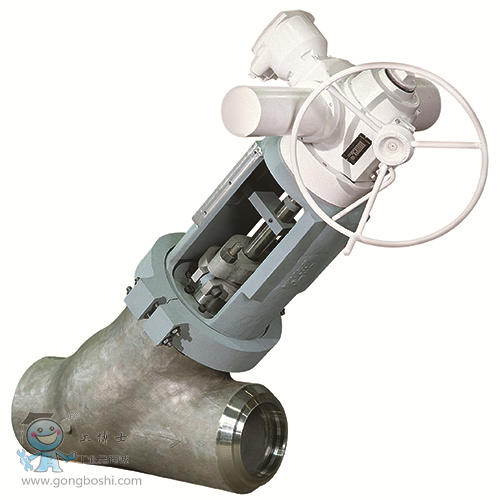

Y-Pattern Globe Valves are high performance, investment cast globe valves designed to minimize destructive turbulence in a variety of demanding throttling applications.

Features and Benefits

•Increased uptime via large radius curves in the body design to ensure smooth transitions and eliminate abrupt changes in fluid direction
•Lower maintenance costs enabled by no-weld design and a rapid change kit
•Broad application versatility provided by T, Y, and Angle pattern valve options and a wide range of pressure configurations
•Functional qualifications per pressure classes 150 through 1500 requirements

Size Range:
•NPS 2 1/2 to 24
•DN 65 to 600

Pressure Class Range:
•150 to 1500
•PN 25 to 260

Seating Material: Metal
