TESCOM SG3 減壓調(diào)壓閥-艾默生EMERSON TESCOM

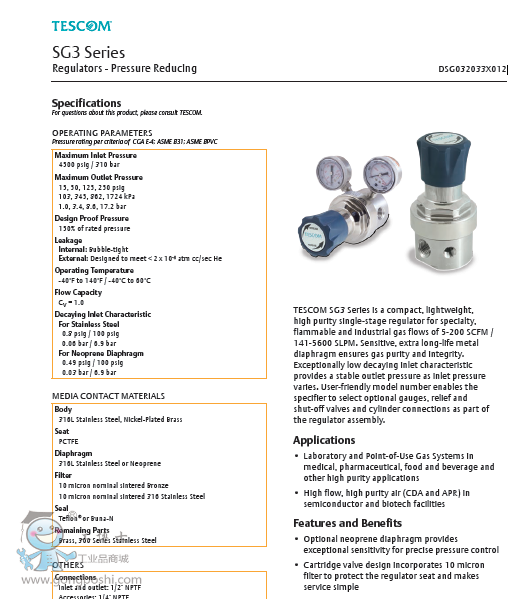

TESCOM SG3 Series is a compact, lightweight,high purity single-stage regulator for specialty, flammable and industrial gas flows of 5-200 SCFM /141-5600 SLPM. Sensitive, extra long-life metal diaphragm ensures gas purity and integrity.
Exceptionally low decaying inlet characteristic provides a stable outlet pressure as inlet pressure varies. User-friendly model number enables the specifier to selec optional gauges, relief and shut-off valves and cylinder connections as part of
the regulator assembly.
Applications
• Laboratory and Point-of-Use Gas Systems in medical, pharmaceutical, food and beverage and other high purity applications
• High flow, high purity air (CDA and APR) in semiconductor and biotech facilities
Features and Benefits
• Optional neoprene diaphragm provides exceptional sensitivity for precise pressure control
• Cartridge valve design incorporates 10 micron filter to protect the regulator seat and makes service simple
