TESCOM 26-2000系列 減壓調(diào)節(jié)閥

26-2061A24S170, 26-2011A24S170, 26-2091A24S170

26-2062A24S170, 26-2061A24S170, 26-2063A24S170

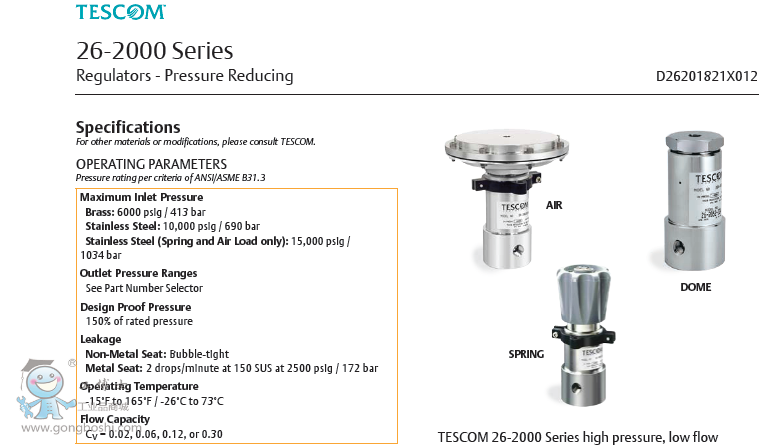

TESCOM 26-2000 Series high pressure, low flow piston sensed regulator is available in dome, spring and air load versions. This regulator comes with segregated captured venting standard with inlet pressure ratings of 6000-15,000 psig / 413-1034 bar.

Applications
• R&D labs
• Pressure filling
• Calibration testing
• Burst testers
• Component testing
• High pressure hydraulic or pneumatic applications Features and Benefits
• Segregated captured vent is standard
• Three standard loading methods - spring, dome, and air actuated
• Available with soft and metal-to-metal seating
• Standard 40 micron internal filter (soft seated models) increases service life
• High flow version is available with Cv of 0.30
• An excellent choice to be used with the TESCOM ER5000 Electropneumatic Controller
