產品簡介

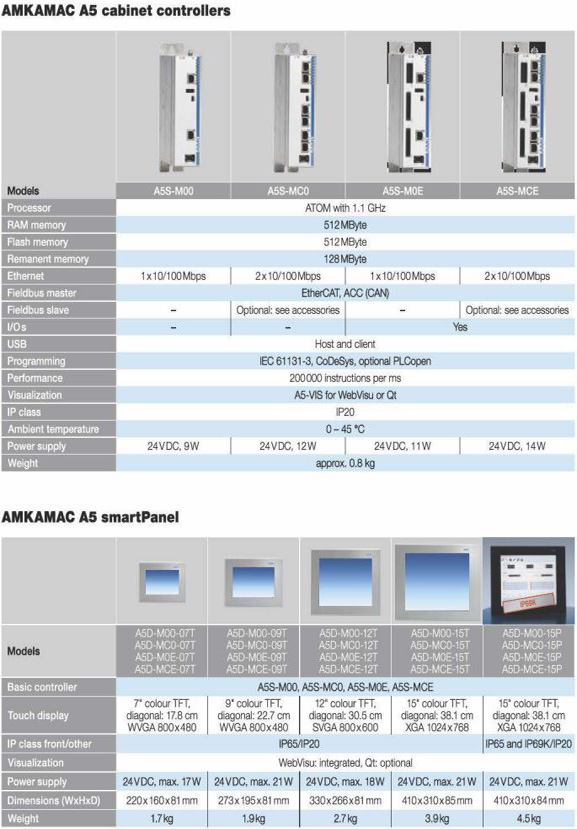

• ATOM processor, 1,2 GHz • 512 MByte memory (RAM) • 512 MByte flash • 128 kByte retain memory
詳細資料
· Motion Control integrated
· I/Os in addition
· Central and modular machine-controller-concepts
· Scalable all-in-one solutions
· PLC functionality
· Comprehensive technology function

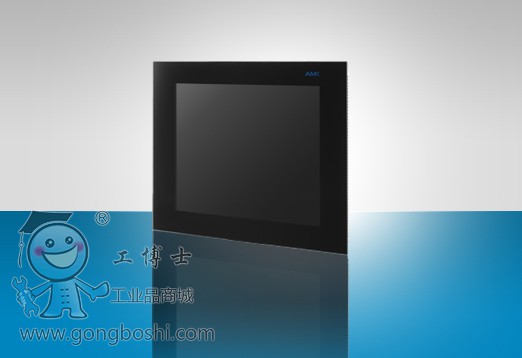

The AMKAMAC smartPanels are an optimum solution for controlling machines and plants. The machine control systems are available as a structural unit with a 7-, 9-, 10-, 12-, or 15-inch touch display and are thus extremely compact. The EtherCAT real-time fieldbus is used, making the number of nodes within the bus practically unlimited. The synchronized cross communication with other controllers in the system makes them even more flexible to use.
The Ethernet and USB interfaces enable easy access, and the individual PLC programs can be easily loaded. Another feature of AMKAMAC controllers is remote access and diagnostics of all nodes on the fieldbus. Process data can be read out and managed via the OPC server.
