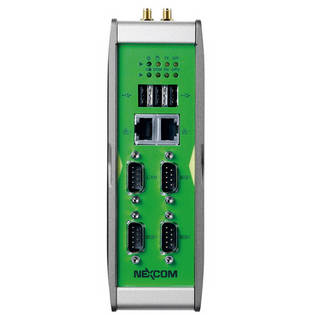

NISE 91 無風扇設計，具有高可靠性和高性能。此外，NISE 91配備豐富的I/O接口，例如個天線孔、GPIO、CAN BUS、3x COM、雙Intel® GbE LAN 和直流電源輸入( 12V 或者 24V DC) 針對不同應用，可靈活使用。
主板 On-board Intel® Atom™ E640 1.0GHz processor, 512K Cache On-board chipset: Intel® EG20T
內存 On-board DDR2 1G memory chip, unbuffered and non-ECC support
存儲設備 1x 2.5” SATA HDD drive bay for optional SSD or HDD Support optional SATA DOM, horizontal type only
前置I/O界面 3x USB ports 2x RJ45 GbE LAN ports, Intel® 82574L controller on board, Support LAN teaming 3x DB9 serial ports
COM1: support RS232/422/485 (selected on BIOS menu)
COM2: support RS232 only COM3: support RS232 only 1x DB9 CAN bus
- Support CAN 2.0b protocol (support both 11-bit and 26-bit identifiers)
- Support bit rates up to 1Mbps
- Clock frequency of 40MHz
后置I/O界面 1x DB15 VGA port 1x DB15 male connector for 8CH General Purpose Input 1x DB15 male connector for 8CH General Purpose output 3-pin DC input, support 12V DC input and 24V DC input 1x power on/off switch
頂部I/O端口 1 x internal mini-PCIe socket on board 2 x antennas for optional Wi-Fi module
支持操作系統 Windows XP Windows Embedded Standard 2009 Fedora 14 (Kernnel 2.6)
尺寸 59mm(W)x 140mm(D)x 167mm(H)
構造 Aluminum chassis with fanless design
運行環境 Operating temperature:
Ambient with air flow: -5 ~ 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20 ~ 80°C Relative humidity: 10% ~ 93% (non-condensing) Shock protection: 20G, half sine, 11ms, IEC60068-2-27 Vibration protection
Random: 0.3Grms @5~500 Hz according to IEC68-2-64
Sinusoidal: 0.3Grms @5~500 Hz according to IEC68-2-6
